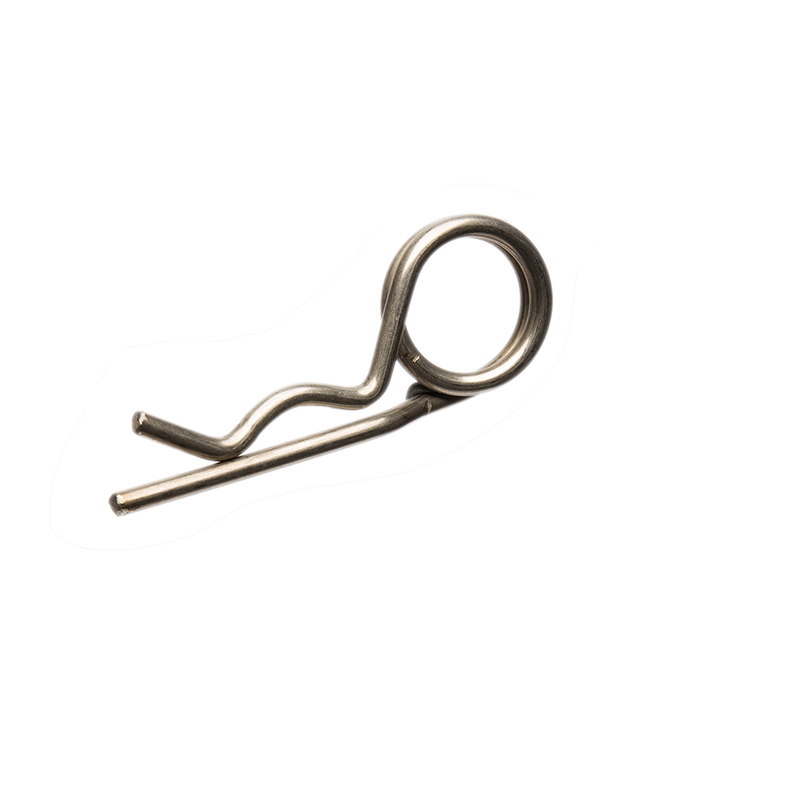

Image for illustration purposes only

Retaining Pins, Double Coil

Descriptions

The Retaining Pin, also known as Spring Cotters, R Pins or Hair Pin Cotters, are easily fitted and removed spring steel wire retention device for shaft mounted items. They rely on their inherent spring force to maintain their installed position inserted diametrically through the shaft, using the materials inherent spring force to prevent unwanted movement.

Double Coil Retaining Pins are a type of retaining pins or ‘R-Pins’ with a double coil, allowing a stronger and more secure hold as the which allows the stress to be spread out more evenly across the pin.

A Double Coil Retaining Pin is preferred when a lanyard or chain needs to be attached as the complete ring form prevents it from being lost. The double coil also provides a more comfortable and therefore safer insertion force.

The double coil allows the Retaining Pin increased elasticity, allowing for a wider size coverage. Pinstructure Double Coil Retaining Pins are available 2mm to 8mm wire diameters, from 8-14mm to 45-56mm suggested shaft size.

Pinstructure offers Double Coil Retaining Pins to works standard and to DIN 11024, in the following materials:

DIN 11024: High Carbon Steel, Zinc Plated and A4 (316) Stainless Steel
Works standard: High Carbon Steel, Zinc Plated and A2 (304) Stainless Steel

The fundamental differences between both ranges are:

Type	Material	Measured by
Works standard	Spring Steel or A2 Stainless Steel	Wire Diameter
DIN11024	Spring Steel or A4 Stainless Steel	Hole Diameter
