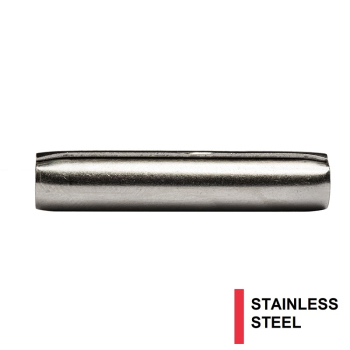

Image for illustration purposes only
Metric, Stainless Steel
You need to be logged in to see prices.Our Stainless and Carbon Steel metric Coiled Spring Pins are manufacture to ISO8750 (DIN7343). Sizes available within our Carbon Steel range are 1.5mm to 20mm diameter, lengths of 4mm to 120mm. The Stainless Steel range offers sizing of 1.5mm to 12mm diameter and lengths of 4mm to 100mm.
The Inch Coiled Pins are available in Carbon (Series A55) and Stainless Steel (Series D55), sizes from 1/16" to 3/4" diameter by 3/16" to 4" lengths.
Our Steel pins are normally supplied self colour, however we can offer in zinc plated if required. Note finish on certain part numbers may differ from standard stock, this is highlighted within the product description.
| Product Standard description | Spring Pins, Coiled |
|---|---|
| Pinco Part Number | A55, D55 |
| British (BS) | 7058 |
| DIN | 7343 |
| ISO | 8750 |
| Others | |
| Standard Stock range | ISO 8750 |
